Heavy-Duty Power Protection for Large Electrical Systems

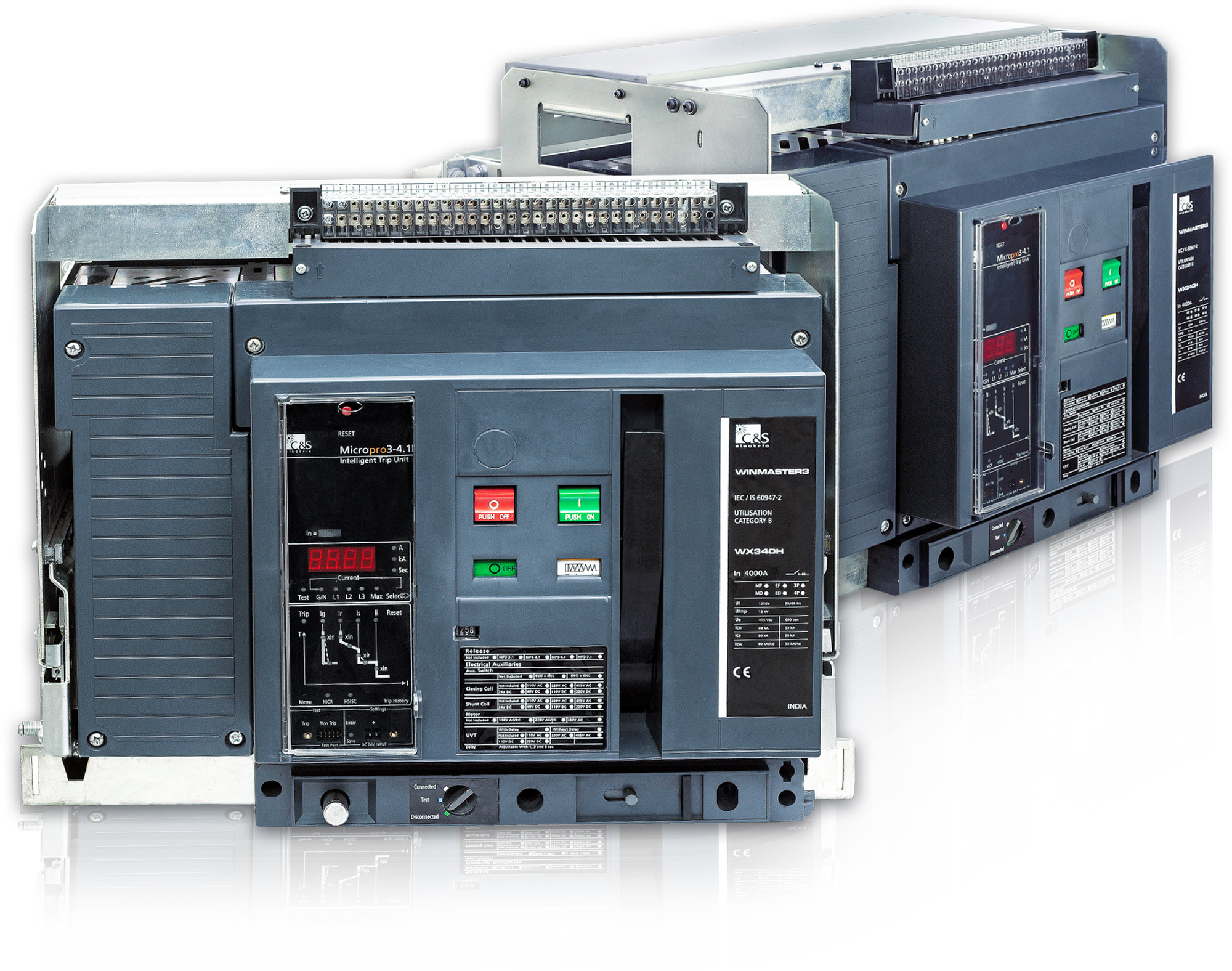

The Air Circuit Breaker ACB provides powerful protection for low-voltage electrical networks handling high current loads. It protects systems from overloads, short circuits, and earth faults while maintaining reliable power continuity in critical operations.
Moreover, ACBs use air as the arc extinguishing medium, which ensures safe interruption of fault currents without oil or gas. As a result, these breakers offer easy maintenance, high breaking capacity, and long service life. Industries, hospitals, malls, and manufacturing plants depend on ACBs for main incomer and outgoing feeder protection.
🔐 Key Features & Benefits
✅ High current ratings from 800A to 6300A
✅ Excellent short circuit breaking capacity
✅ Advanced electronic or thermal protection
✅ Draw-out or fixed mounting options
✅ Selective coordination for safety
✅ Fast fault clearing performance
✅ Mechanical and electrical interlocks
✅ Long operational lifespan
✅ Easy maintenance and inspection
✅ IEC certified reliability
🏗️ Applications
Perfect for:
🏭 Low Tension (LT) main panels
🏢 Commercial buildings and plazas
🏥 Hospitals and data centers
☀️ Large solar plants and substations
🚜 Generator synchronization panels
🏗️ Industrial power distribution systems
📊 Technical Specifications (Typical)
-
Product Type: Air Circuit Breaker
-
Rated Current: 800A – 6300A
-
Rated Voltage: Up to 690V AC
-
Breaking Capacity: Up to 100kA
-
Poles: 3P / 4P
-
Trip Unit: Electronic / Micrologic
-
Mounting: Fixed / Draw-out
-
Control Voltage: 110V / 220V AC/DC
-
Mechanical Life: 20,000+ operations
-
Compliance: IEC 60947-2
🛠️ Supply & Engineering Support
SMS Engineering supplies high-quality ACBs from trusted brands with complete technical guidance, panel integration support, and fast delivery across Pakistan 🇵🇰. Whether you are designing a new LT panel or upgrading existing infrastructure, our engineering team ensures correct selection and safe installation.
