The MC4 Branch Connector for Parallel Solar Panels – Multibranch is designed for safely connecting multiple solar panels in parallel. It ensures a secure and efficient electrical connection while minimizing power loss. Built with high-quality, weather-resistant materials, these connectors provide IP67 waterproof protection and support high DC voltage applications. Ideal for residential, commercial, and off-grid solar systems, these multibranch connectors simplify installation and improve system efficiency.

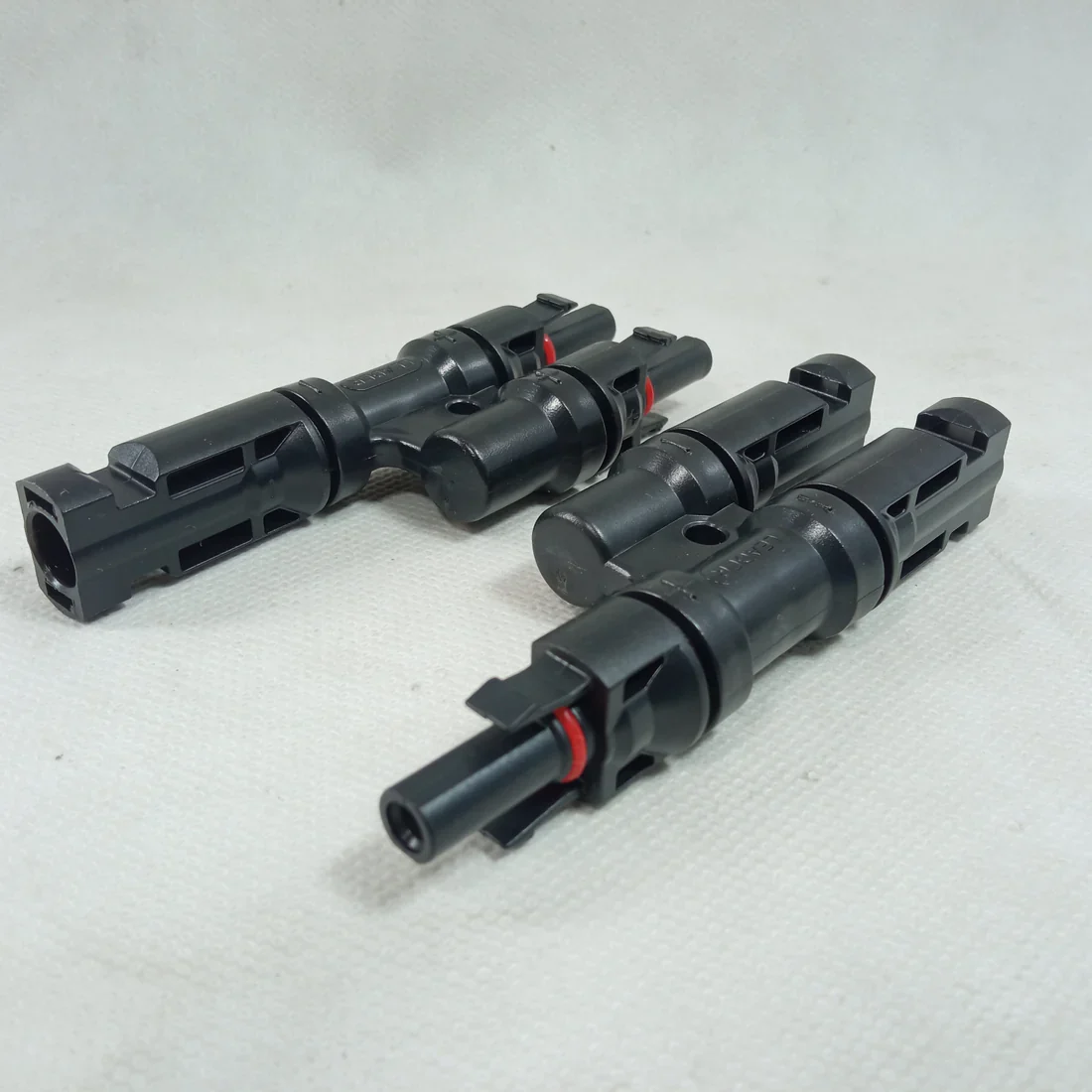

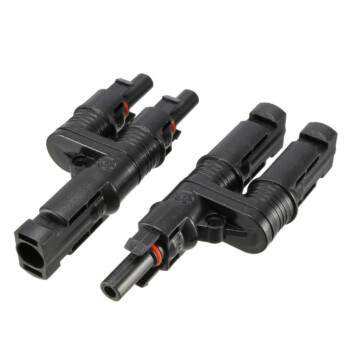

The Multi-branch connectors with 2 inputs create a parallel connection between two solar panels. Increase the current rating of the PV string with safe and water-proof connectors. Ideal for off grid , grid tie and hybrid installations.
- Insulation material PPO
- Rated Voltage 1500V DC
- Rated Current 50A
- Test voltage 6KV(50Hz,1Min)
- Contact material copper, tin-plated
- Contact resistance less than 0.5 m ohm
- Degree of protection IP67
- Pin dimension 4.0 MM
- Compatible Solar cable 2.5/4.0 /6.0 mm² (14/12/10 AWG)
